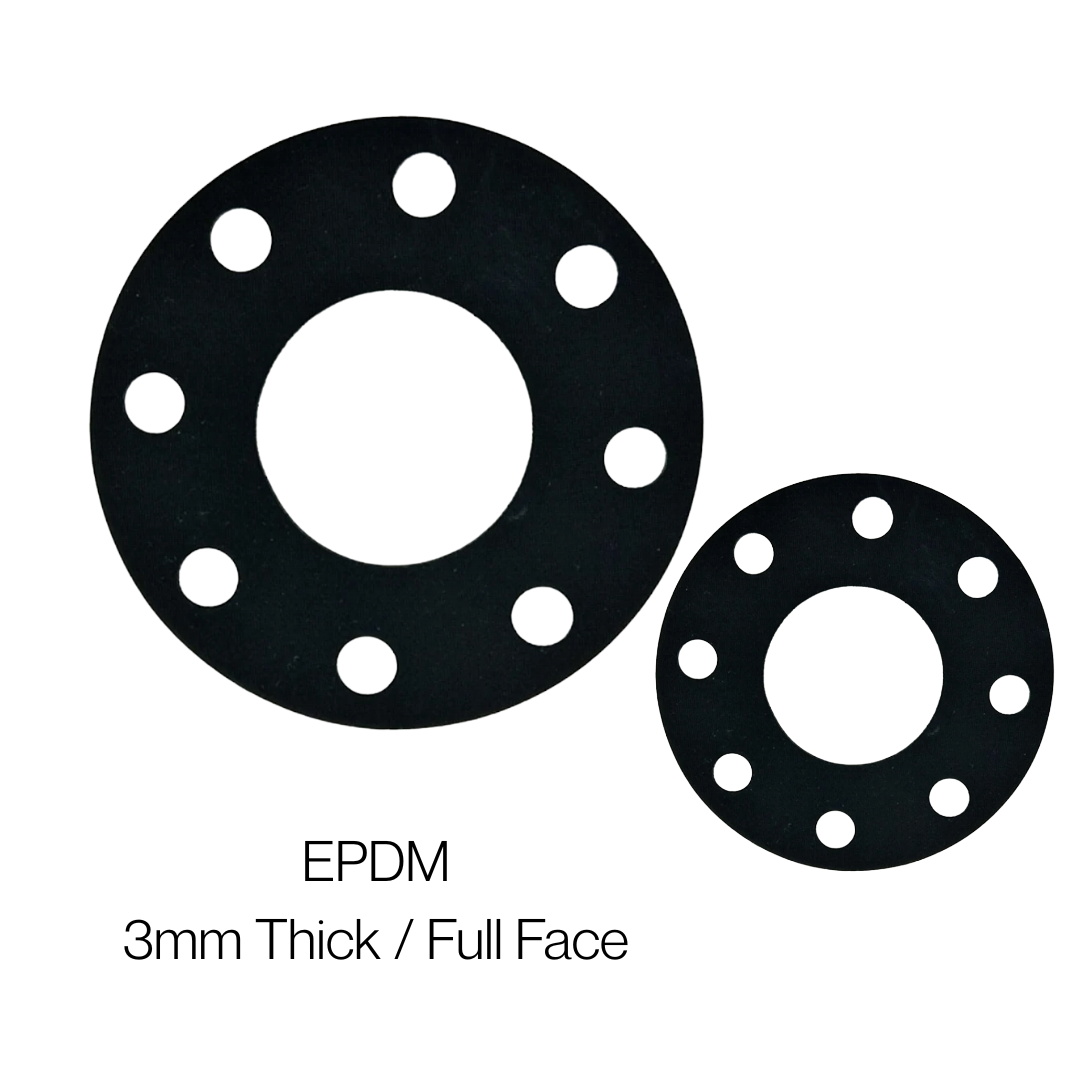

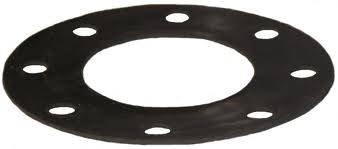

WRAS Approved EPDM Gasket 3mm Full Face |4' to 24' | – High-Quality Sealing for Potable Water Applications

WRAS Approved EPDM Gasket 3mm Full Face |4' to 24' | – High-Quality Sealing for Potable Water Applications

Regular price £6.36 GBP
Regular price Sale price £6.36 GBP
Sale Sold out
Shipping calculated at checkout.
Size
Rating

WRAS Approved EPDM Gasket – High-Quality Sealing for Potable Water Applications

Corseal’s WRAS approved EPDM gaskets are manufactured from premium-grade EPDM rubber, offering exceptional resistance to ozone, UV, and weathering. Approved for use in applications involving potable (drinking) water, these gaskets are ideal for plumbing, municipal water systems, and utility infrastructure.


✔️ Key Features:

  • WRAS Certified for cold water use only

  • Material Hardness: 70 IRHD (-4 / +5)

  • Excellent resistance to ozone, weathering, and outdoor environments

  • Non-toxic and safe for contact with drinking water


🌡️ Temperature Range:

  • Minimum Continuous: –15°C

  • Maximum Continuous: +100°C

  • Maximum Intermittent: +110°C


🔩 Flange Ratings:

  • ANSI B16.5: ASA 150, ASA 300

  • EN1514 / BS4504: PN10, PN16, PN40

  • Compatible with a wide range of standard flange types


🔧 Mechanical Properties:

  • Compression Set: Max 20% (Tested at 70°C for 22 hours)


📄 Specification Sheet:

SPECIFICATION SHEET
