August 09, 2017

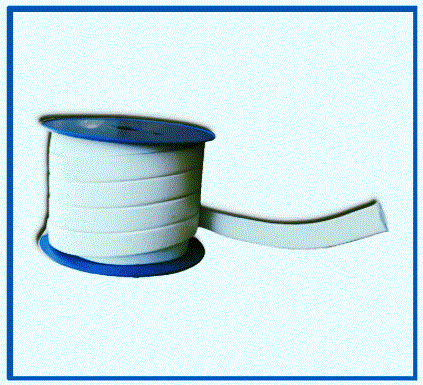

How to install Glad packing braided (including ptfe, graphite, & gfo.)

Steps On How to Install the Packing Material

  • Open the shaft stuffing box supplied by Corseal.
  • Remove the old packing completely.
  • Check to make sure the new packing is the correct diameter size. (Stuffing box gland inside diameter minus shaft diameter divided by 2 should be the size of the packing material being used)
  • Check the condition of the shaft. Any burrs or sharp areas must be repaired prior to installation.
  • Make one wrap of  fibre packing around the drive shaft, wherever it is easily accessible, and cut the single ring to a length where the two ends meet each other(or you can use a mandrel the same diameter size as your shaft to size the ring).
  • Install the fibre packing in the stuffing box with up to 3 rings, one ring at a time making sure that you stagger the ring joints approximately 90°. It is essential that the ends of the rings meet cleanly at the joint. (Do not add grease or other lubricants – these can hinder performance.)
  • Tighten the packing gland until it is snug. Do not over tighten.
  • After about one or two hours of running time, check the prop shaft stuffing box for leakage, and make a final adjustment to attain minimum leakage. (There should be virtually no leakage.)

Packing size: = ( Diameter A – Diameter B ) / 2

August 09, 2017

M & Y values your questions answered

"What are M & Y Values?" We are frequently asked at Corseal to provide M & Y values for our gaskets so that the customer can design flange joints using the ASME Boiler and Pressure Vessel Code. Occasionally, our sales & technical team are asked to explain how these values are used and how they are determined for our gaskets.  In simple terms, a flange must be designed to create sufficient compression load (usually expressed in stress, as psi) on the gasket contact area to create an initial seal. The gasket must conform to the flange surface (serrations when present) and must be compressed enough to seal off any internal voids or spaces. This stress is basically the "Y" value. The "M" value allows the flange designer to determine the compression load on the gasket required to maintain a seal when the vessel is pressurized. The flange must have sufficient strength and bolting to hold the joint together against the hydro-static end force, and to apply some additional "net stress" on the gasket. The "M" value is used as a multiplier or maintenance factor. The design will be such that the flange and bolting will hold the flanges together under pressure (the hydro-static end force) and exert an additional stress on the gasket of "M" multiplied by the internal pressure. The designer calculates the load required to seat the gasket (related to "Y") and performs a second calculation using the "M" value and the design internal pressure. The flanges are then built based on the larger of the two calculated values.

See below for SPIRAL WOUND & CAMPROFILE GASKETS values.

What are the M and Y values for Kammpro(Camprofile), CMG, CMGT, CMGPTFE, Spiral Wound Gaskets (W, WR, WRI), and WRI-LC?

Gasket Style

M-value

Y-value (PSI)

Kammpro

2.75

3,700

CMG

2.75

3,700

CMGT

2.75

3,700

CMG-PTFE

2.75

2,500

Spiral wound

3

10,000

WRI-LC

3

5,000

What is the yield strength for B7 bolts?

105 KSI

How can torque value be calculated?

T = (S * D * A * R) / 12

Where:

  • T: torque value (ft-lb)
  • S: required bolt stress (PSI)
  • D: bolt diameter (in)
  • A: area at root of thread (square inches)
  • R: friction factor

August 09, 2017

Now increasing our on line range of Gland Packing

Here at Corseal we are constantly being asked for varying types of gland packing's for different applications, we did have a standard three in our range that have always been available to purchase on line in our competitively priced eCommerce shop. https://www.corseal.co.uk/collections/gland-packing

Keep an eye out for new ranges and technical information blogs and downloads for your gland braided packing queries.

August 08, 2017

Now stocking Original Flexoid paper

We at Corseal are now pleased to announce that were stocking Flexoid Paper, we have plentiful stocks and are all available for same day dispatch.

Genuine Flexoid gasket paper

Gasket paper is based on cellulose fibre offering reliable sealing at low cost.

Our paper is a cellulose fibre

base impregnated with a plasticized chemical treatment: to resist oil, petrol air, water, alcohol, grease and most solvents.

Oil paper jointing is used for engines, axles, pumps, pipes, and tank flange joints. As such it finds application in the automotive, marine, aero and agricultural industries

Max Temperature:  +100⁰C continuous working temperature

Max Pressure: 8 bar

Applications: used in the automotive industry with it’s excellent oil and fuel resistance.

should you require further information please call 01787 282444, or if you wish to place an order please follow the link below.

https://www.corseal.co.uk/collections/gasket-material/products/gasket-paper



August 07, 2017

When It's Vital. Choose Genuine Viton.


August 02, 2017

Ceramic packing square section now in stock

Corseal are pleased to announce that we are now a stockist of Square section Ceramic Packing, sizes from 6mm to 60mm, all the products are of European origin and of an extremely high specification.

Applications for use, air tight door seals for Industrial furnaces, kilns, and boilers.

Did you know? This Packing is normally supplied loomstate. In the manufacture of ceramic yarn a certain small percentage of organic binder is used to aid spinning. This can sometimes cause “flashing” at high temperatures. This can be avoided if the product is heat cleaned prior to use or if the organic impurities in the product can be allowed to burn off in situ on application for the initial period.

July 31, 2017

Massive stocks of Viton A available from stock

You Just Can't Resist...Viton® A.

Our acid, chemical and oil resistant Viton® A has become one of MacLellan Rubber's success stories. And it could be yours too.Available from ours at Corseal's extensive stocks or drop ship from Importers MacLellan Rubber direct.

We recognise the increasing stringent requirements to meet H&S and environmental obligations in the Oil & Gas field.

That's why our high quality Viton® A products are designed specifically for arduous processing conditions and challenging environments.





If you need a product that has a high resistance to chemicals and oils, call us now on 01787 282444


Our 'genuine' European manufactured Chemours Viton A Fluoroelastomer Rubber Sheet has:

  • a Shore A hardness of 70 degrees;
  • a tensile strength of 7 MPA;
  • is available in 1mm to 25mm thickness.

July 12, 2017

James Salt from zero to hero ( Corseal's new hero)!!!

Congratulations to Corseal's James Salt, who represented us at this years UK Gasket & Sealing Associations annual Golf day at Shrigley Hall in Cheshire, last year he was very unfortunate to win the coverted prize of the wooden spoon, but this year he was truly masterful in his exemplary round of golf and was the Runner up, what a turn round for James, well done from everyone at Corseal.

The photo is James on the left receiving his prize from chairman Mr Simon Winfield

The group photo shows from left to right, Mark Ambrose (Lone Star) Greg Ansell (Corseal) Neil Conneron (V-Seal) James Salt (Corseal)

July 12, 2017

Working on Your Tan this Summer?

As Corseal are a distributor of MacLellan Rubber products stocking a complete range of there products and can be supplied in part or full rolls.

In order to stay safe whilst you work on your tan, make sure you only use products that fully meet technical specifications and high standards, like MacLellan's 1062 Shotblast rubber sheet. Sometimes referred to as Tan Para or Paragum Rubber, our 1062 Shotblast natural rubber sheet has a high abrasive resistance, is tear resistant and has a shore hardness of 40 deg. shore A.Currently in stock for Next Day Delivery in common thicknesses: 2mm, 3mm, 6mm, 10mm and 12mm.



July 05, 2017

Spiral Wound Gaskets

To combat the effects of pressure and temperature fluctuations, flexibility and recovery are essential.

Corseal spiral wound gaskets are the precision-engineered solution for flanged joints, heat exchangers, boiler handholes, manholes, and other high-temperature, high-pressure applications providing resistance to virtually every known corrosive and toxic element.

Contact us now for your requirements..
