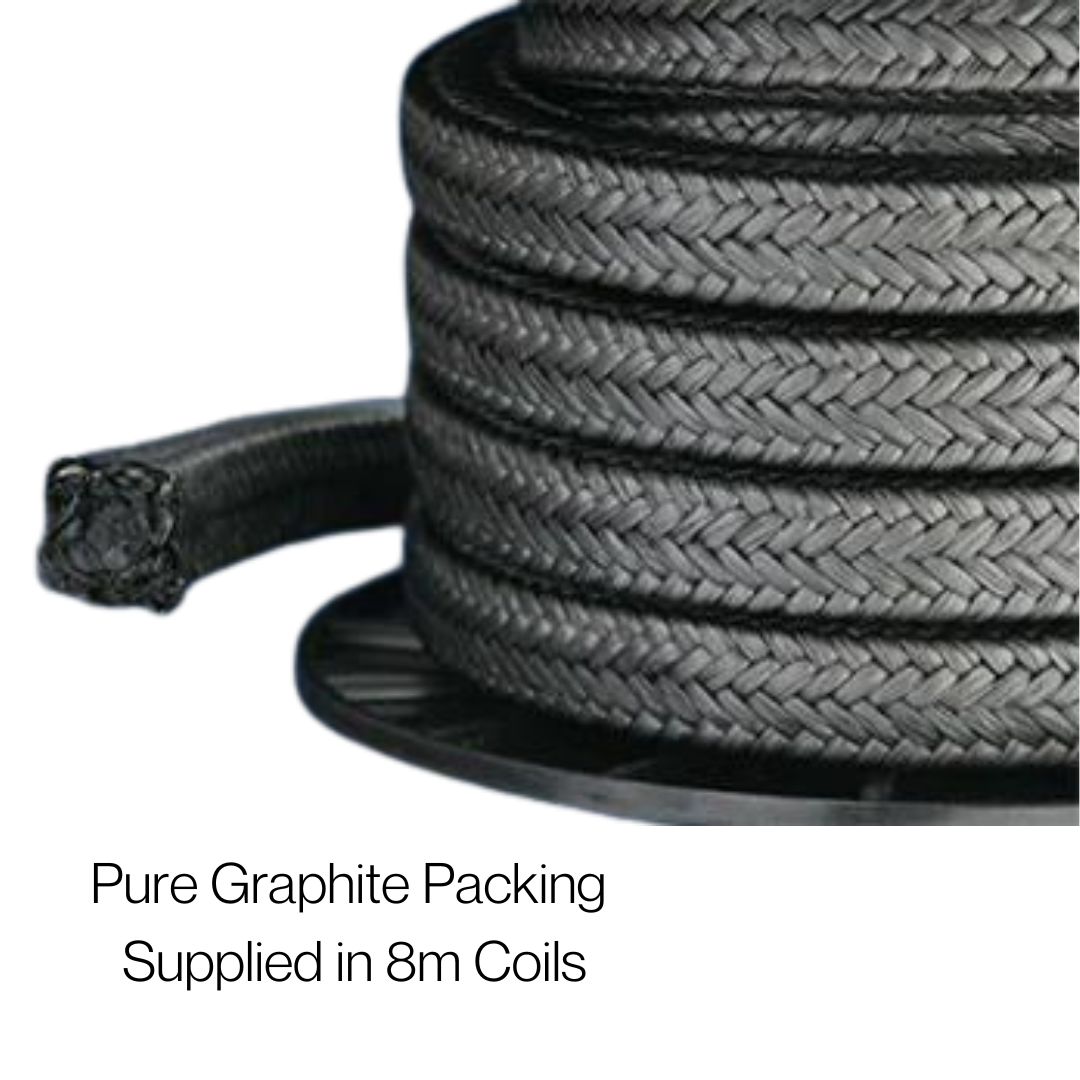

Pure Graphite Packing


Supplied in 8m boxes up to 25mm

Cor-Pack 400G is a Pure Graphite premier grade packing and is available in 8 metre boxes from 4mm section up to 25mm.

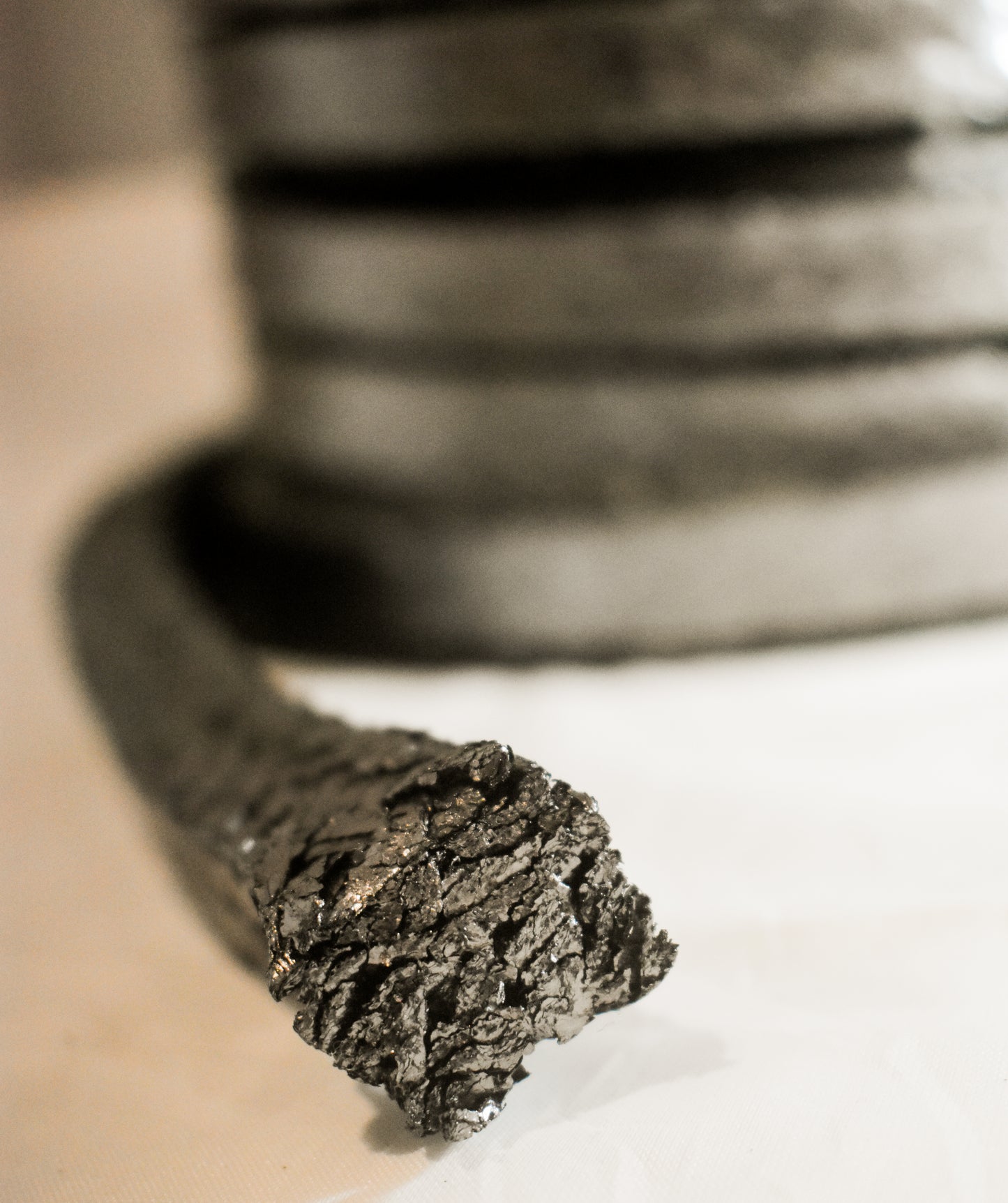

Cor-Pack 400G is premier braided from expanded graphite yarns. The compression packing material is suitable for high temperature applications and where thermal conductivity and low coefficient of friction is important.

Cor-Pack 400G is well know for reducing shaft wear and providing excellent resistance to aggressive chemicals.

Due to the flexible nature and high elasticity of this product, minimum pressure is required to effect a seal.

Supplied in 8m boxes

Price is per 8m box

Data Rotating Reciprocating Valves
Pressure 20 Bar 100 Bar 300 Bar
Shaft Speed 20m/s 2m/s 2m/s
Density 1.0 - 1.1g/cm
Temperature -220/+550°C (650° with steam)
PH 0 - 14
