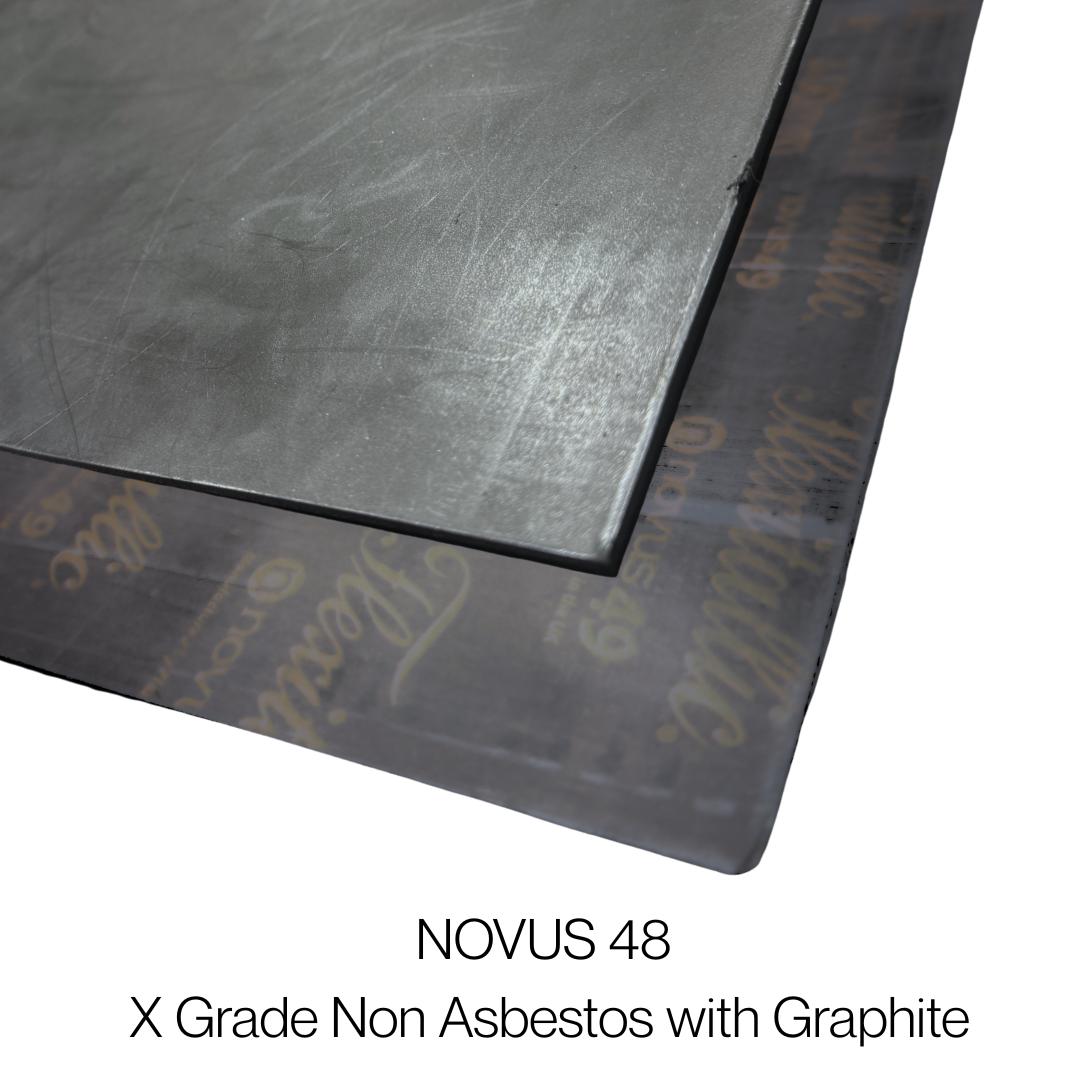

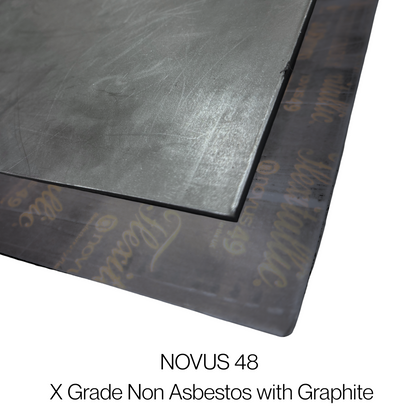

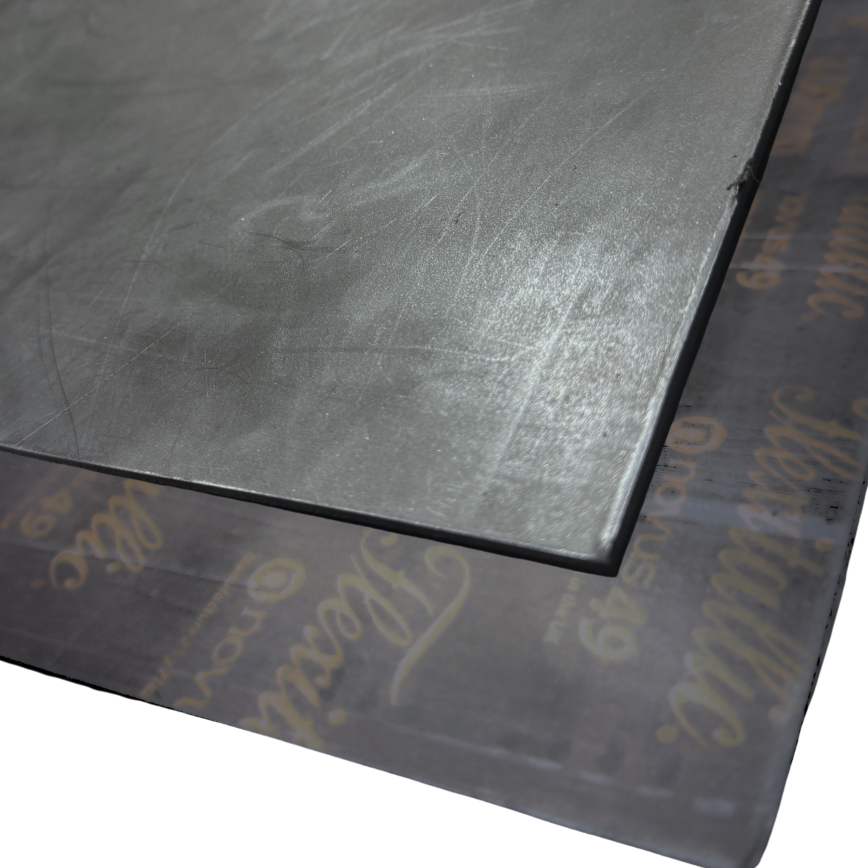

Non-Asbestos Graphite Rubber Gasket Sheet – 250°C Rated, WRAS & BS 7531 Grade X Approved

Engineered for demanding sealing applications, this Non-Asbestos Graphite Rubber Gasket Sheet combines high-temperature resistance, chemical stability, and exceptional pressure tolerance. Reinforced with a blend of non-asbestos fibres and graphite, it is ideal for industrial environments where safety, durability, and compliance are critical.

This sheet is rated for use up to +250°C and 51 bar and complies with multiple global standards including BS 7531 Grade X, WRAS, DNV, TA Luft, and BAM, making it suitable for use in chemical processing, water utilities, power generation, and gas installations.

Sold in 1.5m x 1.5m sheets, it provides reliable sealing in systems carrying water, steam, oils, fuels, salt solutions, weak acids, alkalis, and gases. Choose your desired thickness from the options above.

Key Features

• Temperature Range: Up to +250°C

• Maximum Pressure: 51 bar

• Compliance: BS 7531 Grade X, WRAS, DNV, TA Luft, BAM

• Applications: Sealing for water, steam, gases, oils, fuels, and chemicals

• Colour: Black

• Sheet Size: 1.5m x 1.5m

• Available Thicknesses: Select below
