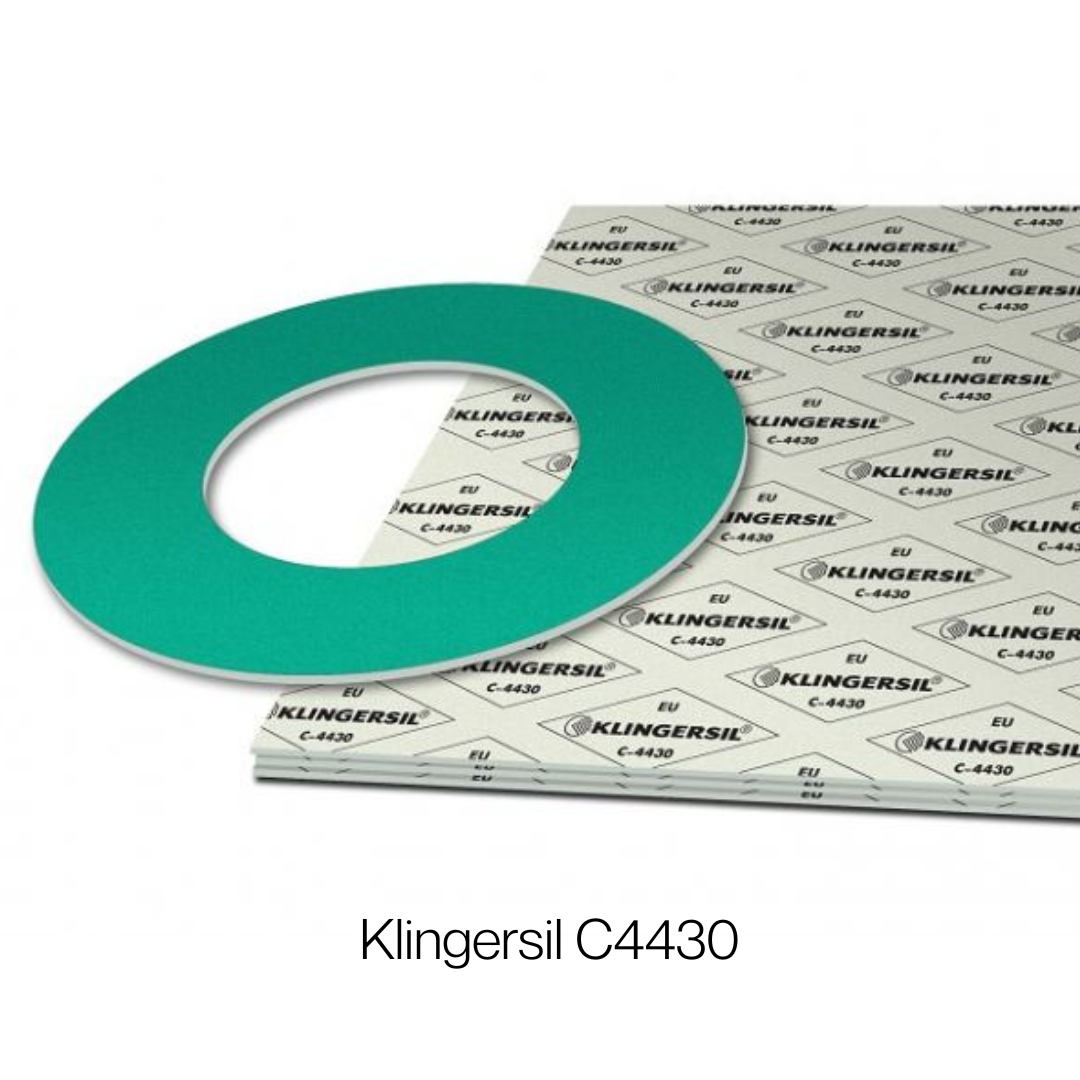

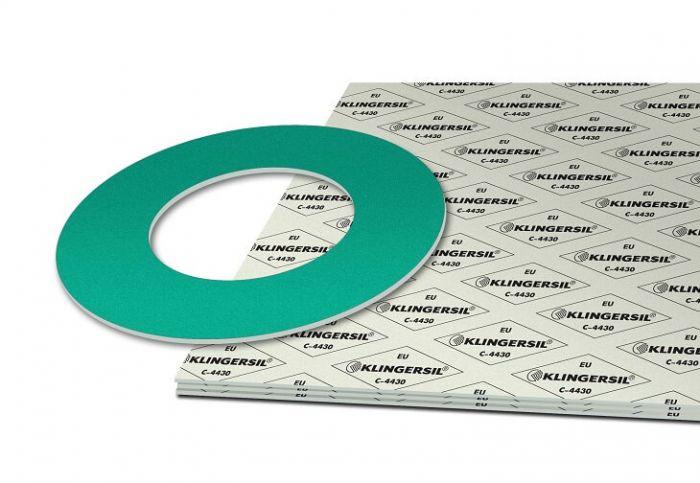

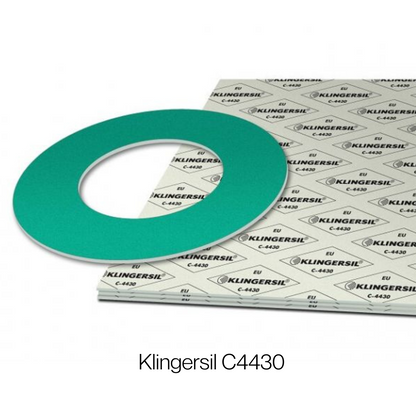

Klingersil C4430 | Non-Asbestos Y Grade Gasket Sheet – WRAS Approved, Steam & Oil Resistant, BS7531 Grade X | 1500mm x 1500mm

The Non-Asbestos Y Grade Gasket Sheet is a premium high-performance sealing material made from nitrile rubber (NBR) and bonded with advanced synthetic fibres. Designed to withstand demanding industrial conditions, this versatile gasket sheet offers excellent resistance to steam, water, oils, and hydrocarbons, while maintaining superior stress relaxation and thermal stability.

Tested and compliant to BS7531 Grade X, this fire-safe material is ideal for applications requiring high pressure (up to 100 bar) and elevated temperatures up to +400°C. WRAS-approved for water applications and fire-safe to BS 5146, it’s trusted across multiple sectors including petrochemical, power generation, water treatment, and marine industries.

This sheet is supplied in a standard size of 1500mm x 1500mm, with other sizes and cut gaskets available upon request.

🔸 Key Features:

• High-performance non-asbestos gasket material

• Made with Nitrile rubber (NBR) and synthetic fibre reinforcement

• Excellent resistance to steam, water, oils, and hydrocarbons

• Temperature range: Up to +400°C

• Maximum pressure: 100 bar

• Fire-safe to BS 5146

• Outstanding stress relaxation and long-term sealing integrity

🔸 Compliance & Standards:

• BS7531 Grade X

• WRAS approved (Water Regulations Advisory Scheme – reference available)

• Fire safe to BS 5146

• For More please see our Specification sheet

🔸 Applications:

✔ Steam lines and pipework
✔ Oil & gas flanges
✔ Water systems (WRAS compliant)
✔ Refineries and chemical plants
✔ Gasket fabrication and OEM use

To read more about the product please see here
