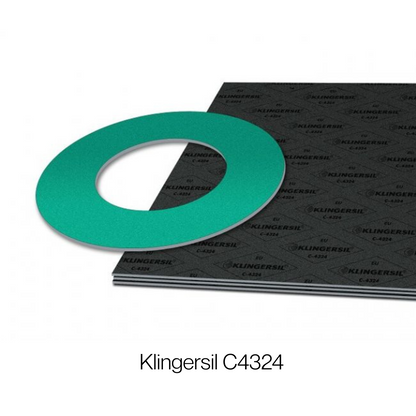

Klingersil C-4324 Gasket Sheet – BS7531 Y Grade, WRAS Approved | 750mm x 500mm | 1500mm x 100mm

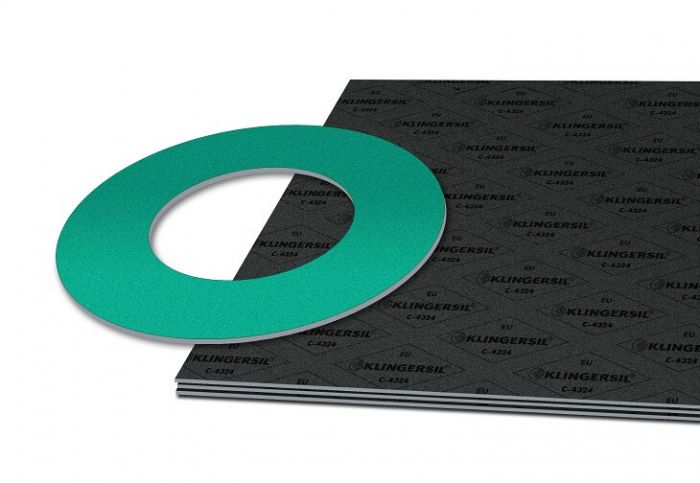

C-4324 is a high-quality, non-asbestos gasket sheet designed for high pressure and medium-temperature sealing applications. This BS7531 Grade Y material is cost-effective and engineered from a nitrile rubber (NBR) blendreinforced with glass, aramid, and carbon fibres, offering excellent strength and dimensional stability.

With continuous temperature resistance up to +180°C and peaks of +350°C, this gasket sheet handles pressures up to 50 bar, making it suitable for a wide range of industrial sealing tasks. It delivers strong resistance to oils, fuels, low-pressure steam, and water, with exceptional performance against gas leakage.

The anti-stick coating on both sides ensures easy removal after service, reducing maintenance time. This product is ideal for use in water treatment, fuel systems, compressors, pumps, and low-pressure steam applications.

🔸 Key Features:

• BS7531 Grade Y non-asbestos gasket material

• High pressure rated: up to 50 bar

• Temperature range: Continuous +180°C / Peak +350°C

• Made from Nitrile rubber (NBR) with glass, aramid & carbon fibres

• Excellent resistance to oils, fuels, water, and low-pressure steam

• Anti-stick finish on both surfaces

• Superior gas tightness and sealing integrity

• Cost-effective performance grade material

🔸 Certifications / Approvals:

• BS7531 Grade Y

• DIN-DVGW

• SVGW 95-043-7

• KTW C 027/95/st

• WRAS Approved (suitable for potable water)

• See more on our Specification Sheet

🔸 Available Sizes:

• 750mm x 500mm

• 1500mm x 1000mm


🔸 Applications:

✔ Fuel & oil systems
✔ Water and steam pipelines
✔ Industrial pumps & flanges
✔ General maintenance gasket material
✔ Sealing solutions in water treatment and heating systems
