100R6 Hydraulic Hose Oil Return / Fuel
100R6 Hydraulic Hose Oil Return / Fuel
Couldn't load pickup availability
Available in Black, Red, Blue and Green.
Applications:
-Low pressure hydraulic applications, for use with push style fittings.
Specifications:
SAE100R6

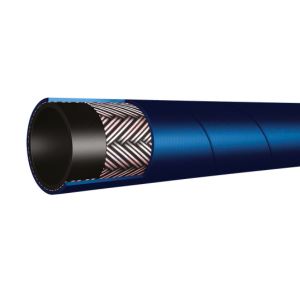

Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single textile yarn braid. Outer cover: oil and weather resistant synthetic rubber.
Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water.
Working Temperature:
-40 degrees to +100 degrees
If you don't see a size required, please do get in contact.
|
Bend Radius |
W.T |
|||||||||||||
|
mm |
inch |
SAE |
Min |
Max |
Min |
Max |
Mpa |
Psi |
Mpa |
Psi |
inch |
mm |
Kg/m |
|
|
100R6-04 |
6.3 |
1/4 |
-4 |
6.1 |
7.0 |
11.9 |
13.5 |
2.8 |
410 |
11.2 |
1620 |
2.56 |
65 |
0.13 |
|
100R6-05 |
8 |
5/16 |
-5 |
7.6 |
8.5 |
13.5 |
15.1 |
2.8 |
410 |
11.2 |
1620 |
2.95 |
75 |
0.15 |
|
100R6-06 |
10 |
3/8 |
-6 |
9.2 |
10.1 |
15.1 |
16.7 |
2.8 |
410 |
11.2 |
1620 |
2.95 |
75 |
0.18 |
|
100R6-08 |
12.5 |
1/2 |
-8 |
12.4 |
13.5 |
19.0 |
20.6 |
2.8 |
410 |
11.2 |
1620 |
3.94 |
100 |
0.26 |
|
100R6-10 |
16 |
5/8 |
-10 |
15.6 |
16.7 |
22.2 |
23.8 |
2.4 |
350 |
9.8 |
1420 |
4.92 |
125 |
0.31 |
|
100R6-12 |
19 |
3/4 |
-12 |
18.7 |
19.8 |
25.4 |
27.8 |
2.1 |
310 |
8.4 |
1220 |
5.91 |
150 |
0.40 |
|
100R6-16 |
25 |
1 |
-16 |
25.0 |
25.8 |
31.9 |
33.1 |
2.0 |
290 |
8.0 |
1160 |
8.07 |
205 |
0.55 |
