Gylon 3504
Gylon® Style 3504

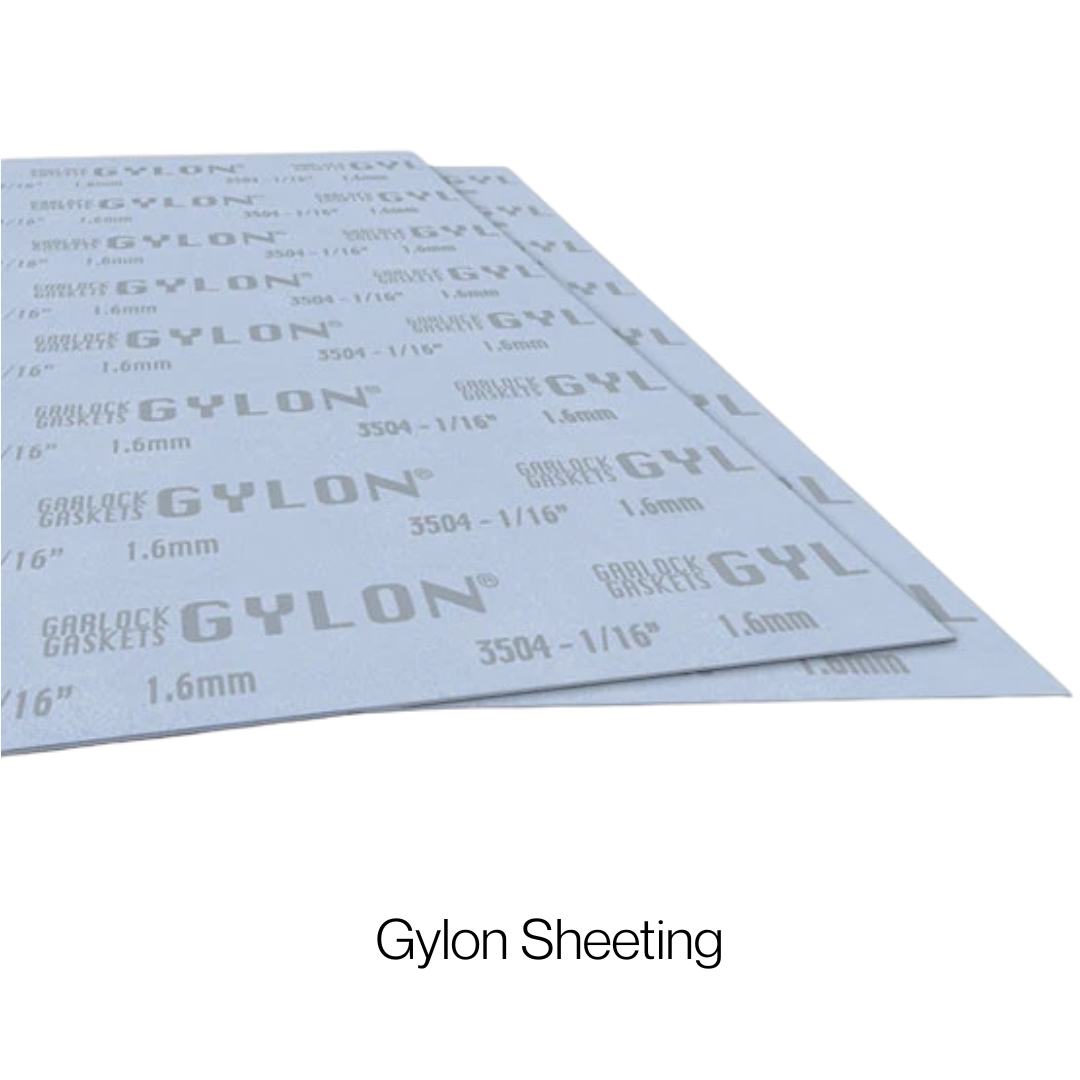

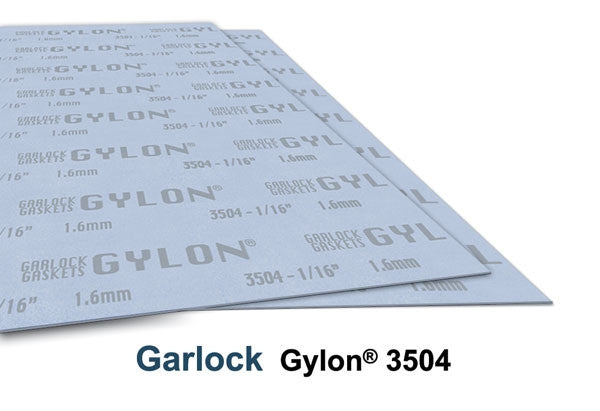

GYLON® Style 3504 - Blue PTFE Gasketing with aluminosilicate microspheres.
Benefits
Tighter seal
- Improved performance over conventional PTFE
- Reduced product loss and emissions
Reduced creep relaxation
- Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
- Excellent bolt torque retention
Chemical resistance
- Withstands a wide range of chemicals for extended service life in a wide variety of applications
Cost savings
- Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste
Largest sheet sizes
- Offers some of the largest sheet sizes in the industry
- Improved material utilization reduces waste
Branding and color coding
- Easy identification of superior GYLON® products
- Reduces misapplication and use of unauthorized, inferior substitutes
Media
- Moderate concentrations of acids and some caustics
- Hydrocarbons
- Solvents
- Water
- Refrigerants
- Cryogenics, hydrogen peroxide (For oxygen service, specify "Style 3505 for oxygen service.")
Sheet size options
- 1500mm x 1500mm
- 750mm x 750mm
- 500mm x 500mm
Sheet thickness options
- 1.5mm
- 3mm
Specifications:
| Min. Temperature: | -450 (°F) |
| Max. Temperature: | 500 (°F) |
| Max. Pressure: | 800 (PSI) |
| Maximum PxT 1/16: | 350,000 (°F x PSIG) |
| Maximum PxT 1/8: | 250,000 (°F x PSIG) |
