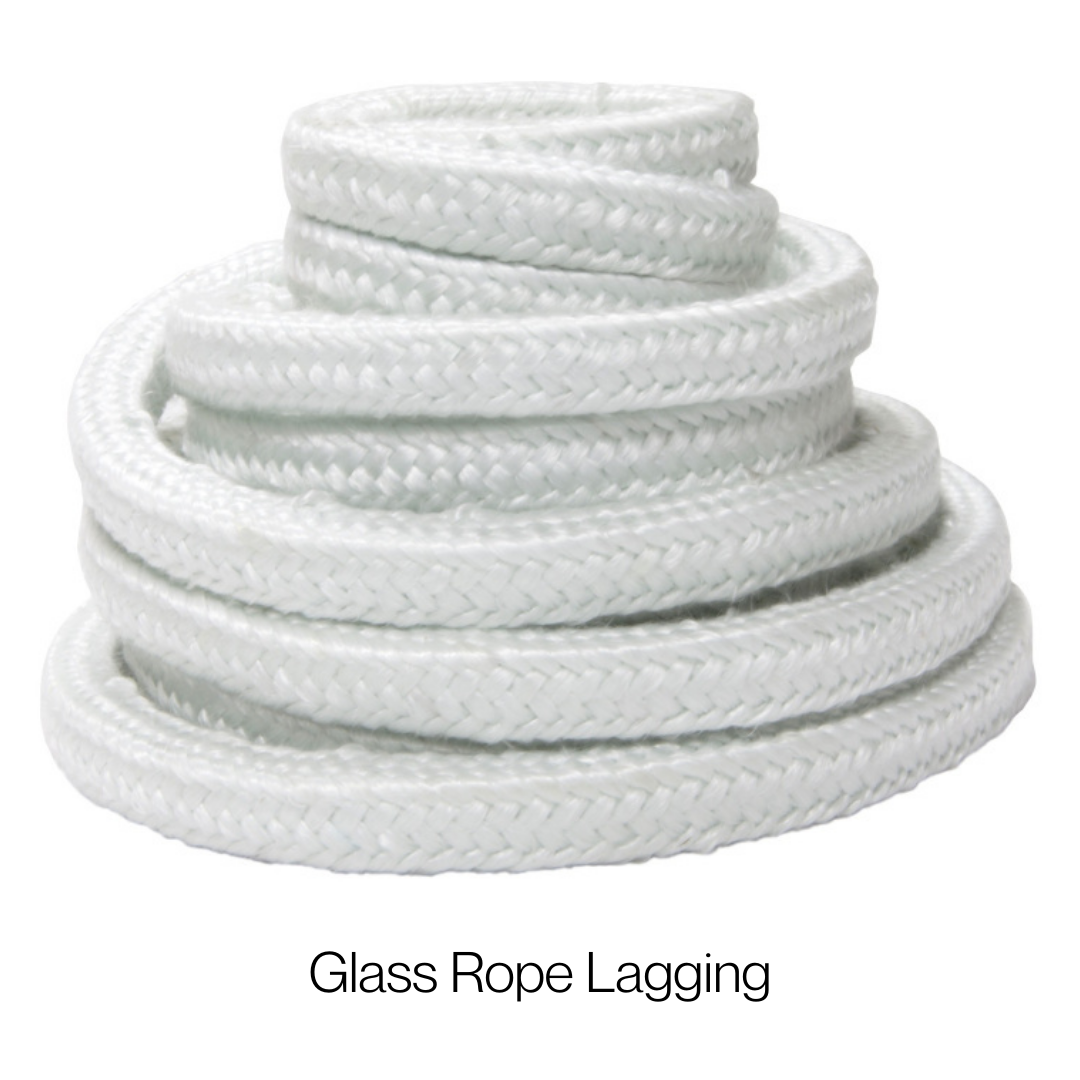

Glass Rope Lagging 550c



Glass Rope Lagging.



Glass fibre products are manufactured with carded or textured glass fibres in E-, C- or R- style.



We use in principle only textured glass fibres and mostly in the well known E-style.



Chemical Composition.



·         Silicon (SiO2)                  : c. 55%

·         Calcium (CaO)                 : c. 20%

·         Aluminium (Al2O3)        : c. 15%

·         Magnesium (MgO)          : c.   5%

·         Rest: Fe2O3  -  B2O3  -  TiO2  -  K2O  -  Na2O





Physical Properties.



·         Colour:  white

·         Diameter of the fibres:  6 or 9 micron

·         Resistance to temperature:  up to 550°C

·         Softening point: 850°C

·         Melting point: 1100°C



Advantages.



·         Good heat resistance

·         Low Heat Conductivity

·         Good electrical insulation

·         Non decaying

·         Good chemical stability (with some exceptions)

·         Good mechanical strength



E-glass builds the ideal asbestos substitute for low temperatures.

It endures thermal stress, has no ignition loss and offers a good mechanical strength.

Priced per: 30m coil



Available Diameters : 8mm, 10mm, 12mm, 15mm, 19mm, 20mm, 25mm, 30mm, 40mm, 50mm



Please contact us for details

01787282444
