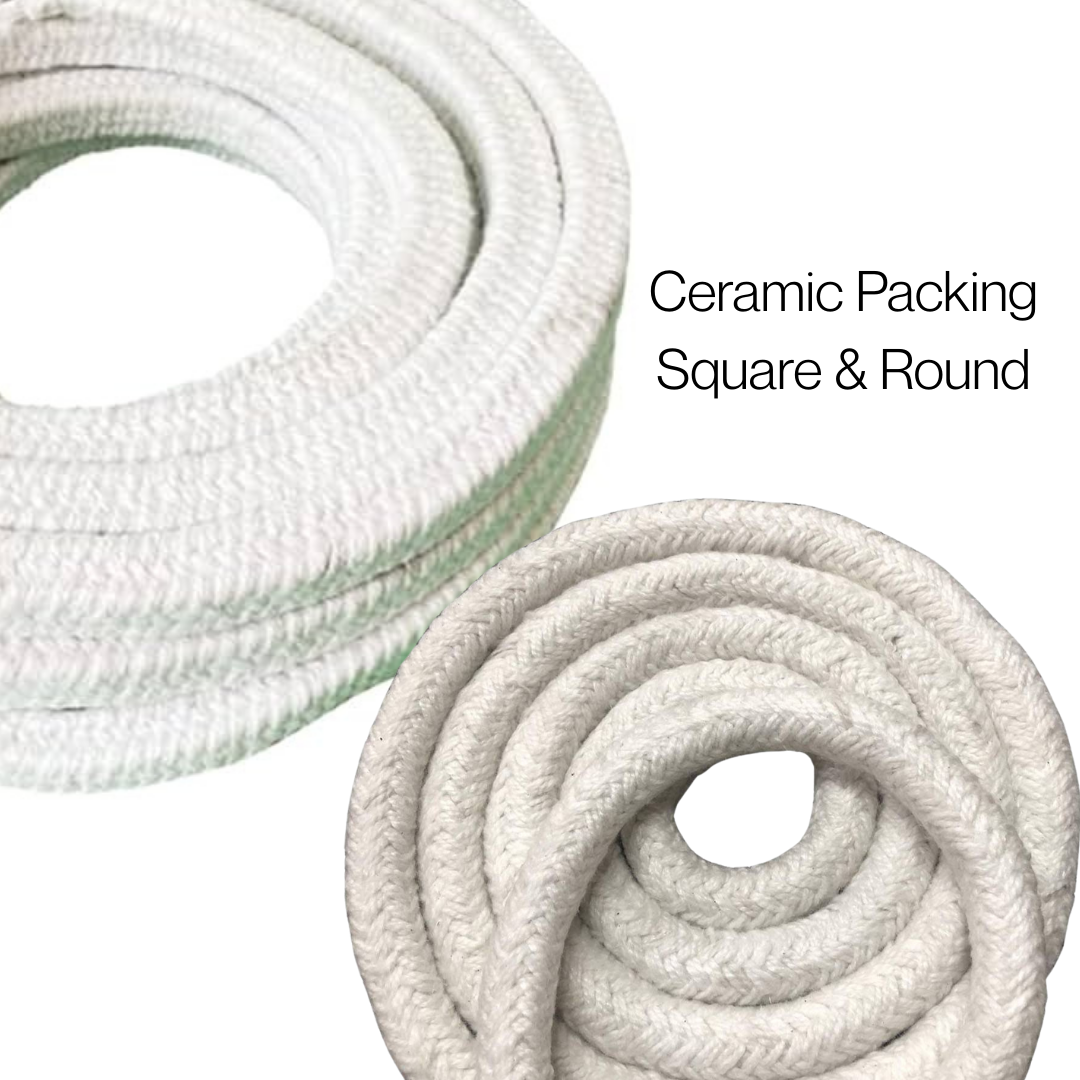

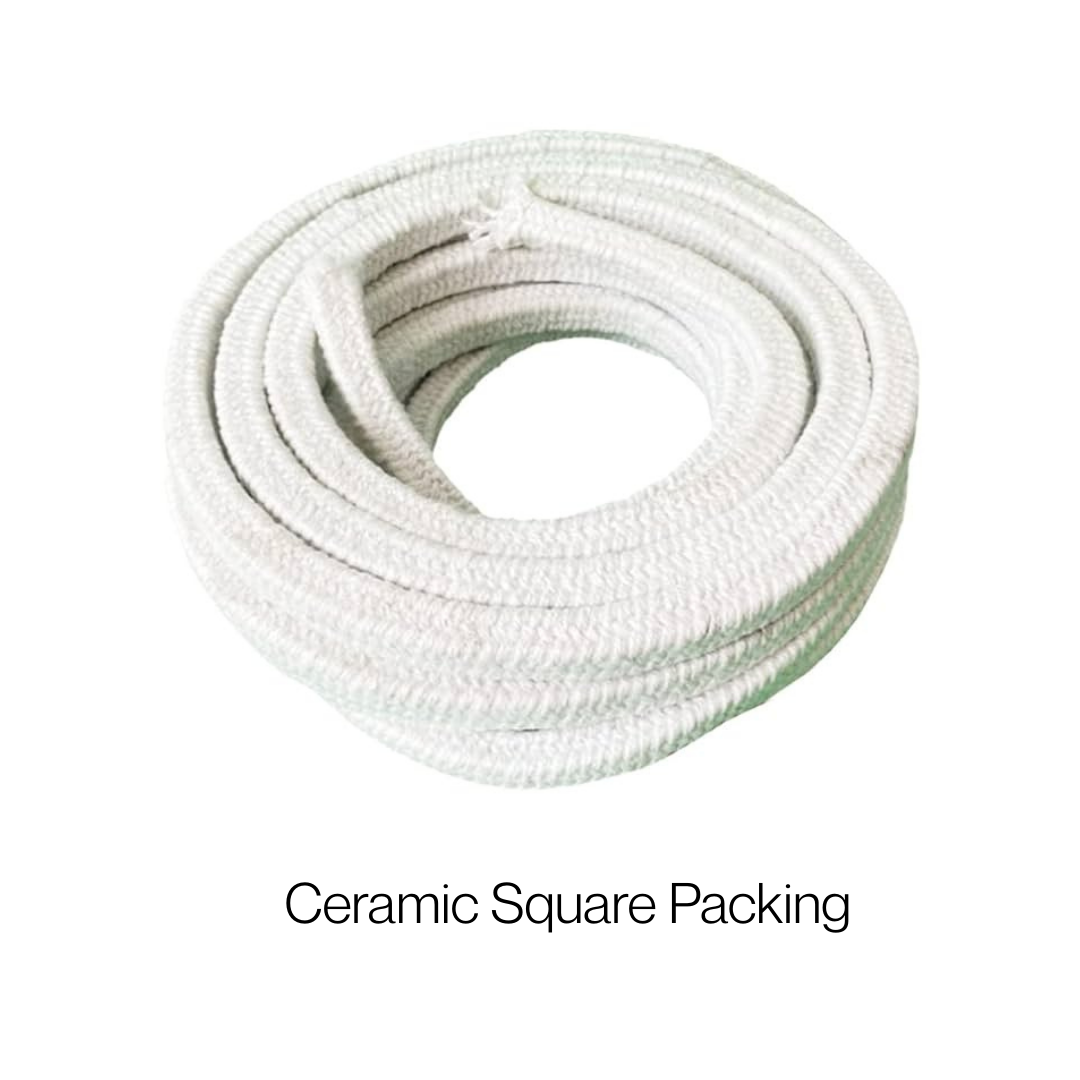

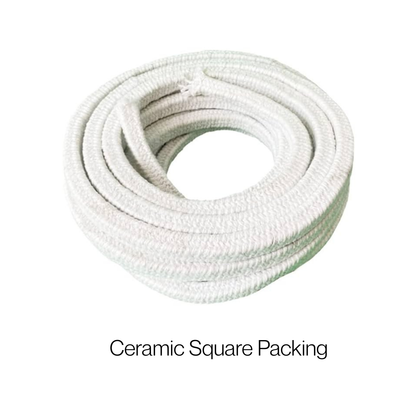

Ceramic Square Braided Packing


Ceramic Packing (Square) (Wire Reinforced)

  • Ceramic packing is manufactured from high performance refractory ceramic fibre yarns reinforced with either glass or wire filament to produce a square rope section.
  •  Ceramic yarns are produced on traditional textile machinery by carding high purity 1260°C grade ceramic fibres with a percentage of cellulose fibre to assist in processing.
  • The yarns are spun and combined with the relevant re-enforcing media to improve the tensile strength at extended temperatures.
  • The organic content will burn off at temperatures above 200°C without affecting properties of the ceramic fibre, however adequate ventilation should be provided during this initial firing.
  • Where tensile strength is important the temperature limitations of the re-enforcing media should be considered.
  • Suitable for temperatures up to 1260°C dependant on application.
  • Resistant to most chemicals except phosphoric acid, hydrofluoric acid and strong alkalis.
  • Ceramic packing is non-combustible, has low thermal conductivity, and is resistant to thermal shock.
  • The ceramic fibre insulation is rated to 1260°C in situ.
  • The wire reinforcement is rated to 1000°C.


6MM           = 100M

8MM           = 100M

10MM         = 50M

12MM         = 50M

15MM         = 50M

20MM         = 30M

25MM         = 30M

30MM         = 10M

40MM         = 10M

50MM         = 10M

60MM         = 10M
