Corseal

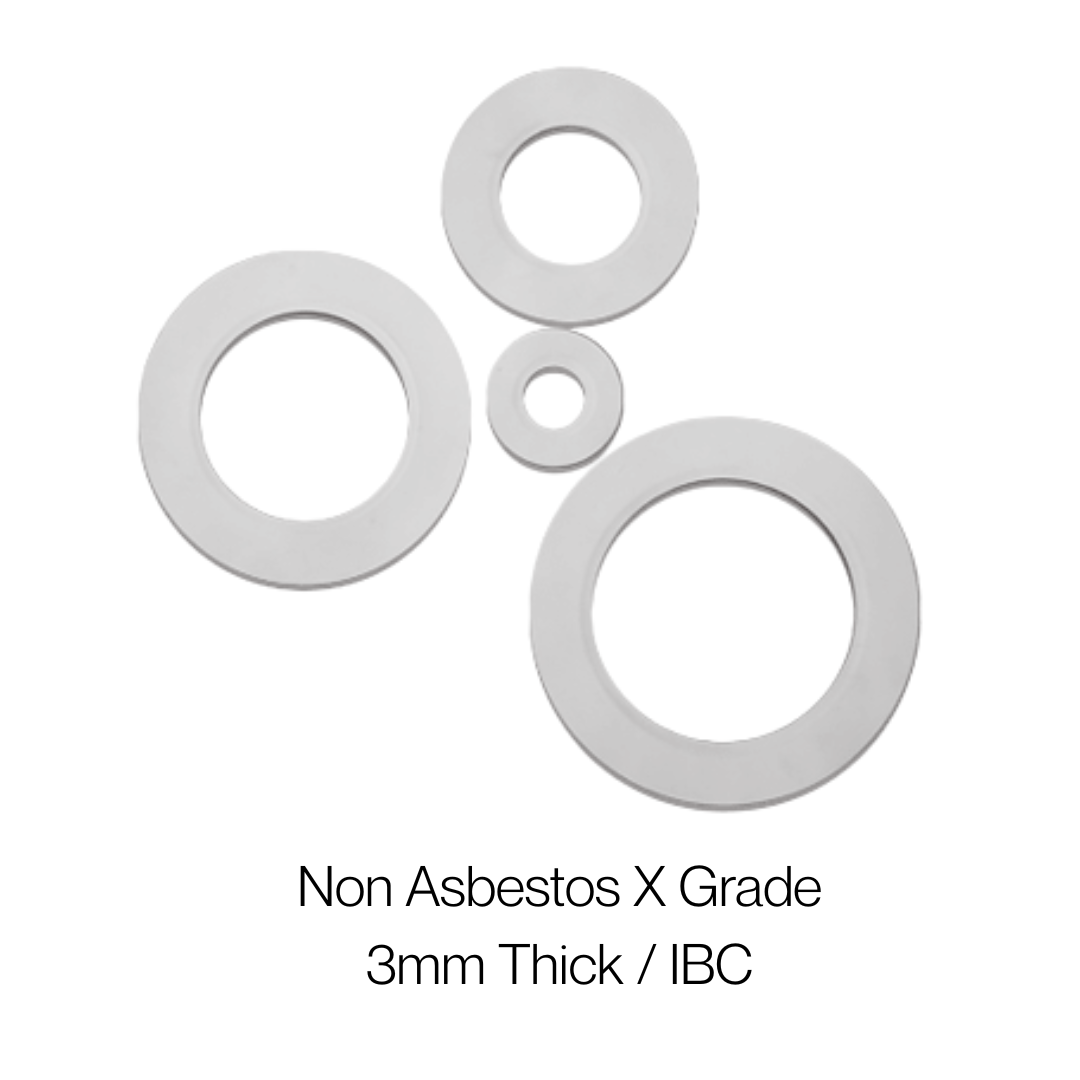

C400 X Grade Non-Asbestos Gasket – IBC, 3mm Thick | 5' to 24' High-Temperature, High-Pressure Resistant

C400 X Grade Non-Asbestos Gasket – IBC, 3mm Thick | 5' to 24' High-Temperature, High-Pressure Resistant

Regular price £8.52 GBP
Regular price Sale price £8.52 GBP
Sale Sold out
Shipping calculated at checkout.
Size
Rating

C400 Non-Asbestos Gasket – IBC, 3mm Thick | High-Temperature, High-Pressure Resistant


Brand: Corseal C400 (Proprietary Material)

Colour: Grey/White as Standard

Type: IBC

Thickness: 3mm

Ratings: ANSI 150, ANSI 300, PN16

Price: Listed per gasket

Specification Sheet: SPECIFICATION SHEET AVAILABLE

C400 is Corseal’s proprietary non-asbestos gasket material, manufactured in white and composed of aramid and mineral fibres, combined with high-grade fillers and an NBR rubber binder. This high-performance sheeting is engineered for high-temperature and high-pressure applications, delivering exceptional sealing reliability across a wide range of industrial uses.


Key Features:

  • Material Composition: Aramid fibres, mineral fibres, fillers with NBR rubber binder

  • Colour: White (non-asbestos)

  • Peak Temperature: Up to 400°C

  • Continuous Operating Temperature:

    • General media: Up to 350°C

    • Steam service: Up to 260°C

  • Maximum Pressure: Up to 12 MPa

  • Gasket Type: IBC

  • Thickness: 3mm (Other thicknesses available upon request)


Media Compatibility:

  • Water & steam

  • Natural gas (for supervised joints)

  • Fuels, kerosene, oils

  • Salt solutions

  • Various industrial fluids and hydrocarbons


Applications:

  • Natural gas transmission pipelines

  • Steam and water systems

  • Petrochemical installations

  • Industrial process systems

  • General sealing in high-pressure environments


Standards & Availability:

  • Fits standard flanges: PN16, ANSI 150, ANSI 300

  • Specification sheet available above

  • Not suitable for food-grade applications – see our food-safe rubber or PTFE range for compliant alternatives
