Corseal

COR A1.045 PVC EDGE TRIM SIDE SEAL WITH SELF GRIP SEAL AND SPONGE BULB

COR A1.045 PVC EDGE TRIM SIDE SEAL WITH SELF GRIP SEAL AND SPONGE BULB

Regular price £6.90 GBP
Regular price Sale price £6.90 GBP
Sale Sold out
Shipping calculated at checkout.
Quanitity

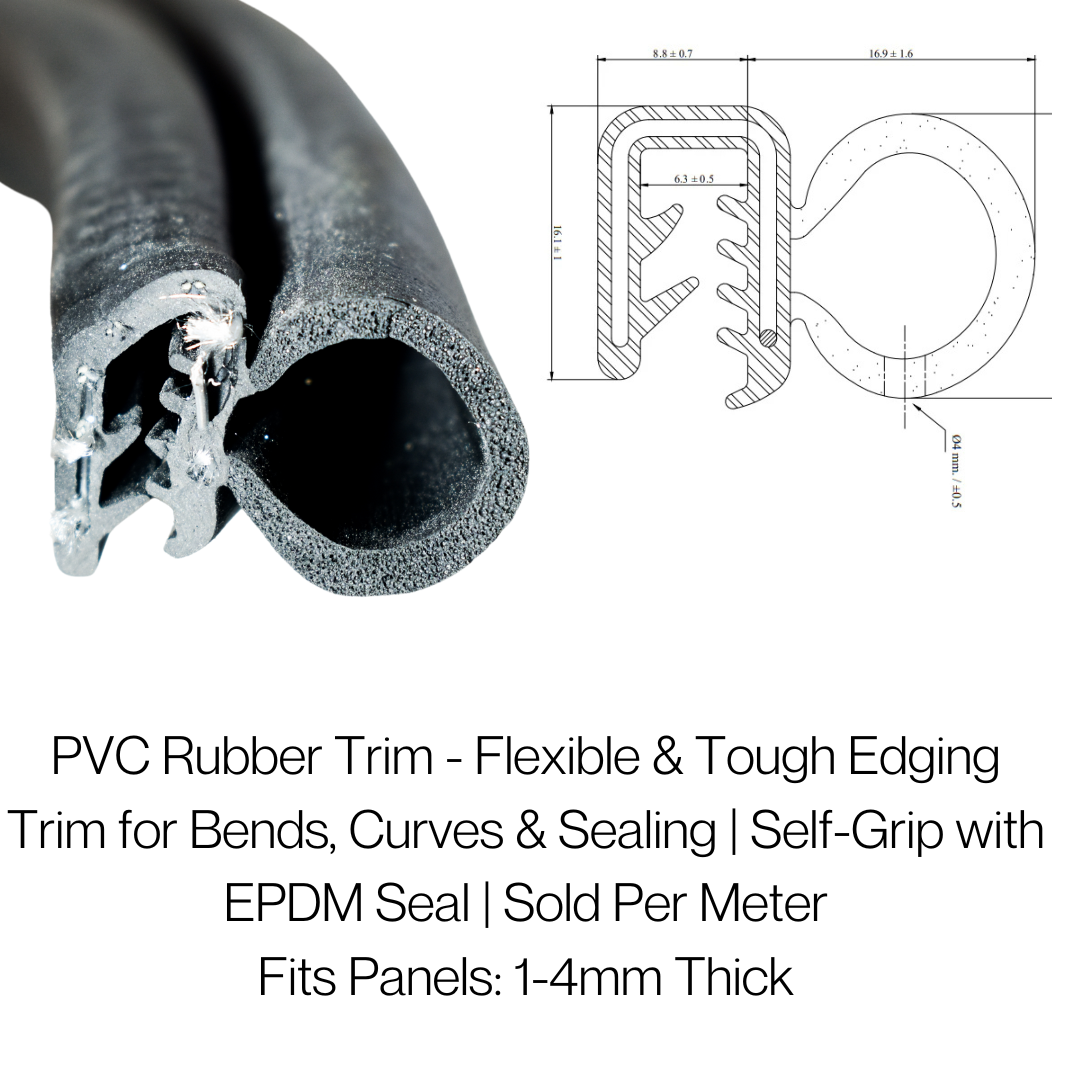

COR A1.045 – PVC Edge Trim with Bonded Sponge Rubber Seal

Supplied per metre – continuous lengths up to 50m

The COR A1.045 is a dual-purpose sealing profile combining a tough PVC edge protector with a bonded EPDM sponge rubber bulb, designed to both cover sharp or unfinished edges and create an effective seal against dust, water, and air ingress.


Key Features:

  • Material Composition:

    • Rigid PVC edge carrier

    • Bonded EPDM sponge rubber sealing bulb

  • Panel Grip Range (A): 1–2mm

  • Overall Height (B): 10mm

  • Base Width (C): 1.2mm

  • Dual Functionality: Edge protection and sealing in a single profile

  • Durability: High resistance to UV, chemicals, and weathering

  • Self-Gripping Steel Core: No adhesives required; presses firmly into place

  • Temperature Range: -20°C to +75°C


Ideal Applications:

  • Automotive panels and doors

  • Enclosure doors and access panels

  • Industrial machinery

  • Marine and caravan trims

  • Anywhere edge protection with sealing is needed

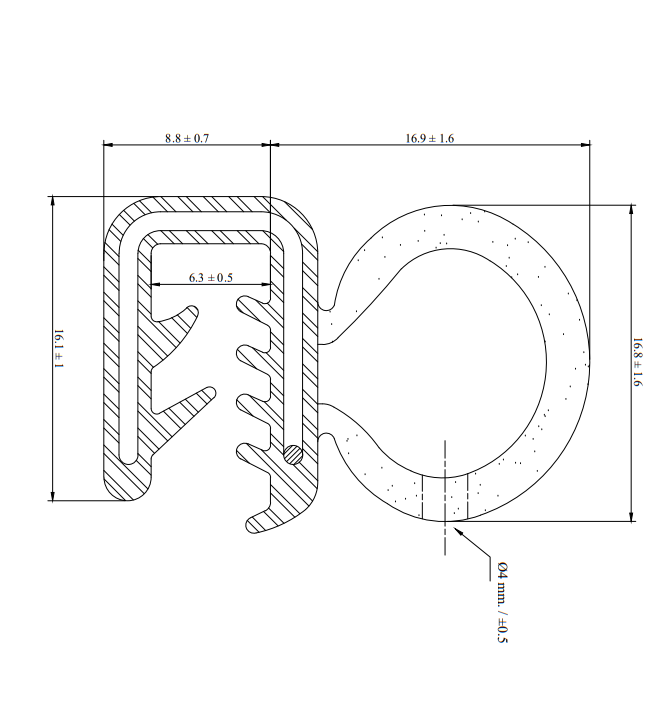

📏 Refer to technical drawings for precise dimensions.


Ordering & Support:

  • To Order: Enter the number of metres required – supplied in one continuous length up to 50m

  • Bulk or International Orders? Contact our sales team for pricing and delivery options

  • Need help? We're happy to assist you in selecting the best seal for your application

View full details
