Corseal

COR 1638 EPDM U CHANNEL EDGE TRIM

COR 1638 EPDM U CHANNEL EDGE TRIM

Regular price £8.13 GBP
Regular price Sale price £8.13 GBP
Sale Sold out
Shipping calculated at checkout.
Size

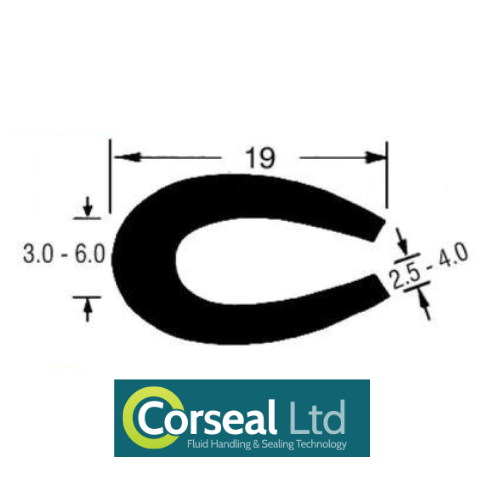

COR 1638 – Heavy Duty EPDM U Channel Edge Trim

COR 1638 is a robust, heavy-duty EPDM U-channel edge trim designed to provide superior protection for vulnerable or high-impact edges. With its thick domed top section (over 3mm thick), this trim is ideal for use on materials like glass, plastic, or metal that are prone to chipping, wear, or damage.

Unlike standard edge trims, COR 1638 is constructed without internal metal inserts, offering excellent flexibility and making it a great choice for applications where metal-reinforced trims are unsuitable or unwanted. The trim offers a moderate grip on its own and can be easily bonded in place with adhesive for more permanent installations.


Key Specifications:

  • Product Code: COR 1638

  • Material: High-grade EPDM Rubber

  • Top Section: Thick, domed (approx. 3mm+) for added protection

  • Panel Fit: Up to approx. 7mm thick

  • Insert: None (no metal core)

  • Colour: Black

  • Supplied: Per metre (continuous length up to 50m)


Performance & Benefits:

  • Extra Thick Dome Top: Enhanced impact and edge protection

  • Flexible EPDM Construction: UV, weather, and ozone resistant

  • Non-metallic: Safe for use near sensitive electronics or corrosion-prone areas

  • Versatile Installation: Push-on fit with optional adhesive bonding

  • Ideal for Glass & Delicate Edges: Prevents chipping and wear


Applications:

  • Edge protection for glass panels, plastic sheeting, and metal frameworks

  • Suitable for vehicles, industrial equipment, marine, and architectural projects

  • Ideal where metal inserts are unsuitable, e.g., in corrosive or non-conductive environments


For large orders, adhesives, or technical support, please contact our sales team.

This product is sold per metre—enter the total required length (up to 50 metres) in the quantity box, and it will be supplied as a continuous, uncut length.
