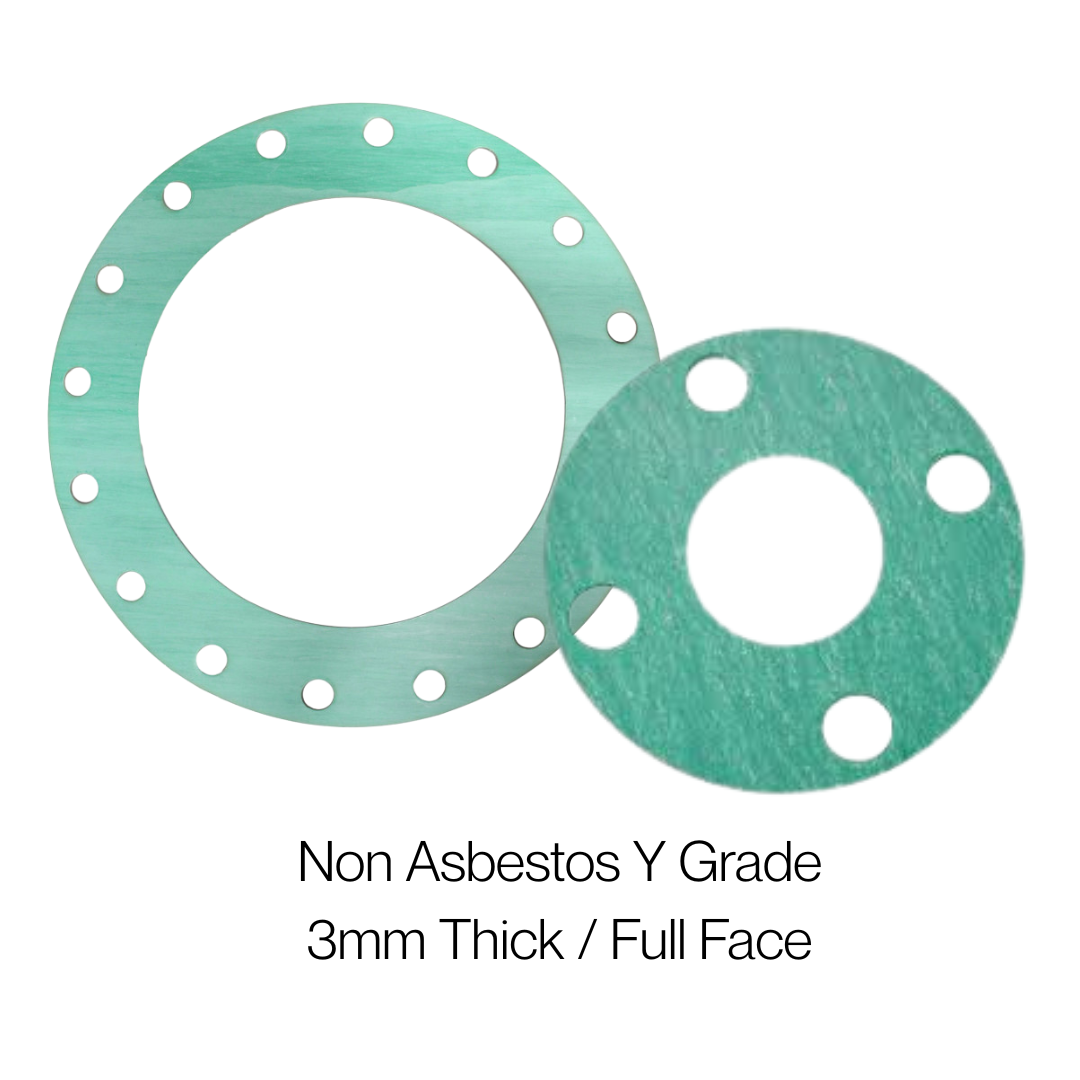

AF300 Non-Asbestos Gaskets – 3mm | Medium-Duty Sealing for Water, Steam & Oils
Brand: Corseal AF300 (Proprietary Material)
Thickness Options: 3mm
Ratings: ASA 150, ASA 300, PN16
Price: Listed per gasket
Specification Sheet: Specification Sheet
AF300 is Corseal’s proprietary medium-duty non-asbestos gasket material, engineered for flexibility and reliable performance in a wide range of sealing applications. Thanks to its natural rubber content, AF300 is particularly suited for uneven or irregular flange surfaces, adapting easily while maintaining a secure seal.
Key Features:
-
Material Composition: Non-asbestos fiber sheet with natural rubber content
-
Thicknesses Available: 3mm
-
Gasket Ratings: ASA 150, ASA 300, PN16
-
Flexible and form-adaptive, ideal for flanges with irregular surfaces
-
Durable and medium-duty performance for a wide range of systems
Media Compatibility:
-
Water and steam
-
Salt solutions
-
Weak acids and alkalis
-
Natural gas, technical propane-butane
-
Oils and fuels (with aromatic hydrocarbon content up to 2%)
-
Brake fluid and cooling fluids
Recommended Applications:
-
Heating systems
-
Power generation and energy infrastructure
-
Municipal utility systems
-
Steam and water pipelines
-
General-purpose industrial sealing
Additional Information:
-
Flexible sealing solution for applications where flange imperfections are present
-
Not suitable for highly aggressive media or high aromatic hydrocarbon content
-
Specification sheet available – contact us for technical data or application guidance
-
Gaskets are sold individually (per piece)
