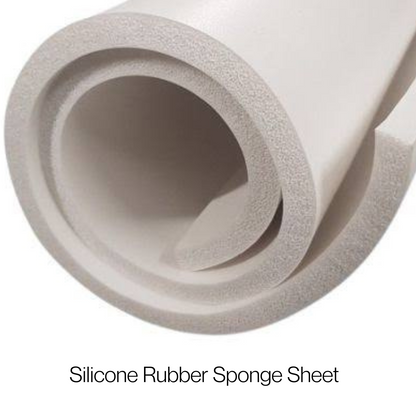

Silicone Rubber Sponge Sheet SIL 16



Cellular silicone rubber is suitable where a soft, easily deformed rubber is required, forexample, for high temperature seals and gaskets. The sheets and punched parts are all available with self-adhesive backing to ease assembly.


The range is suitable for continuous use at temperatures up to +200ºC. It has even been found that at temperatures as high as +300ºC useful lives of up to 10 hours can be achieved. They are also suitable for use at temperatures as low as -60ºC.


This range of polydimethylsiloxane have been “free-blown” with a chemical blowing agent and crosslinked with an organic peroxide. The cellular structure is produced without the use of CFC’s thus making less damaging to the environment.


Has a Limiting Oxygen Index (LOI) of 28%, the other products have an LOI of 23.2% (BS2782 Part 1) and comply with the following flammability specifications:

FAR 25.853 (a)(1)(iv) and (a)(1)(v) horizontal flammability tests.CAA specification 8 issue 2 (2.2)(c) and (d) horizontal flammability tests.


The range has a very low degree of moisture absorption. Mechanical properties shows little change even after long periods of immersion.


The product range is available in off-white as standard. Other colours, such as red oxide, are available, we can colour match to most customer requirements.


Silicone rubber has excellent resistance to ozone, oxidation, ultraviolet light, coronadis charge, cosmic radiation, ionising radiation and weathering in general. Typical radiation resistance is greater than 10 grays (greater than 10 rads).

Colour :White

Finish: Talc

Roll Dimensions:1000mm x 1000mm

Thicknesses Available: 1.5mm,2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm

If FDA (food contact) is required, refer to our special FDA grade HT800,

Contact Corseal for Self Adhesive Backed





Additional carriage charges will apply for Northern Ireland, Republic of Ireland,                                                                                                                      Channel Islands, Isle of Man, Scottish Highlands, Islands and rest of the world.


Please contact us for details
