Reinforced Graphite Laminate Sheet with SS316 Insert – Chemical & High-Temperature Gasket Material | 1m x 1m or 500mm x 500mm

Reinforced Graphite Laminate Sheet with SS316 Insert – Chemical & High-Temperature Gasket Material

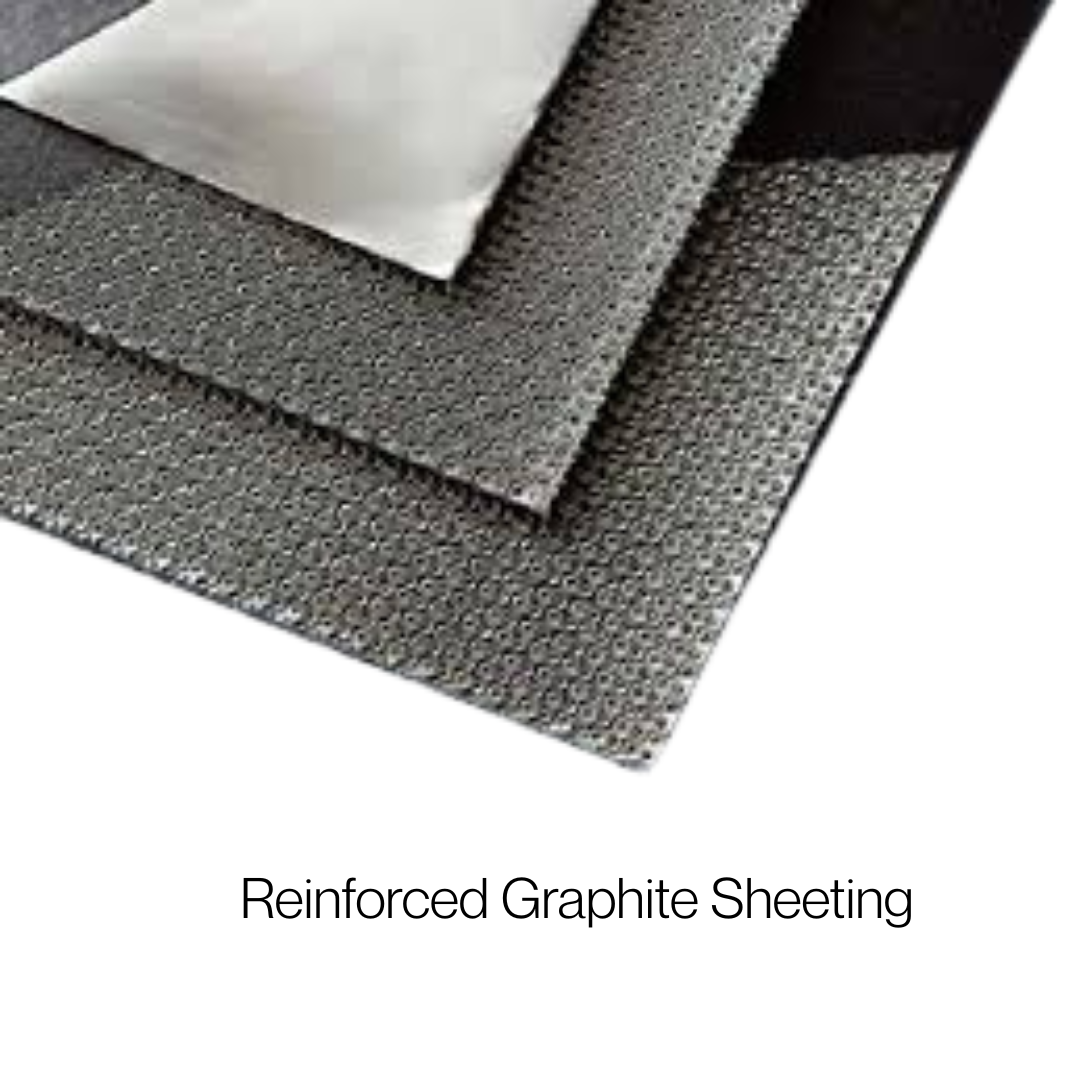

Corseal’s Reinforced Graphite Foil Laminate Sheet is manufactured with one or more layers of stainless steel 316 tanged or flat insertions, bonded with a chloride-free adhesive layer for maximum stability and safety. This high-performance gasket material is designed to provide excellent strength, tightness, and creep resistance, while still being easy to cut and fabricate.

With a reinforcement thickness of just 0.05mm, this material is suitable for high-temperature, high-pressure applications across chemical, petrochemical, oil & gas, and manufacturing industries.

🔹 Key Features:

• Graphite foil reinforced with SS316 steel (0.05mm thick)

• Chloride-free adhesive bonding for durability & chemical stability

• Excellent creep resistance, thermal conductivity, and seal integrity

• Easier to cut and fabricate than traditional graphite tanged sheets

• Complies with BAM (Oxygen) and DVGW standards

• Available thicknesses: 1.0mm to 3.0mm

• Standard sizes: 1000mm x 1000mm, 500mm x 500mm

• Other sizes & thicknesses available on request

• 📄 Download full specification sheet

🔹 Applications:

✔ Chemical processing
✔ Petrochemical plants
✔ High-temperature pumps and compressors
✔ Pipe flange joints and industrial sealing
✔ On-site gasket cutting and fabrication
